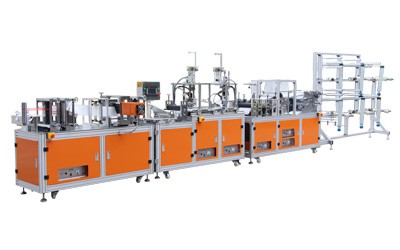

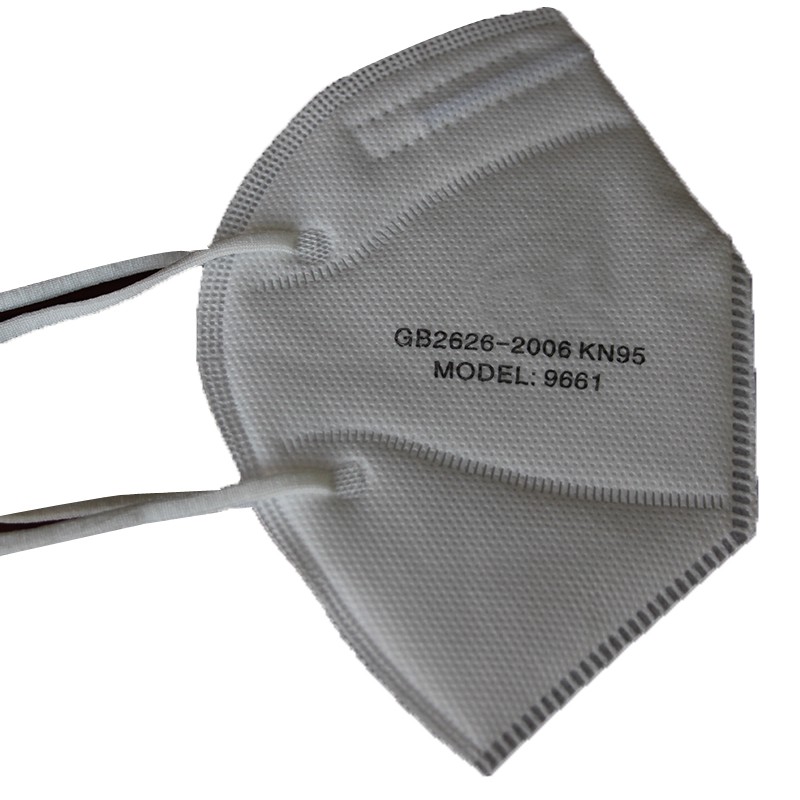

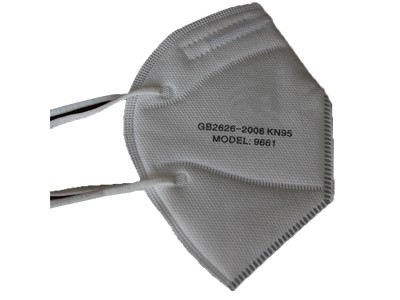

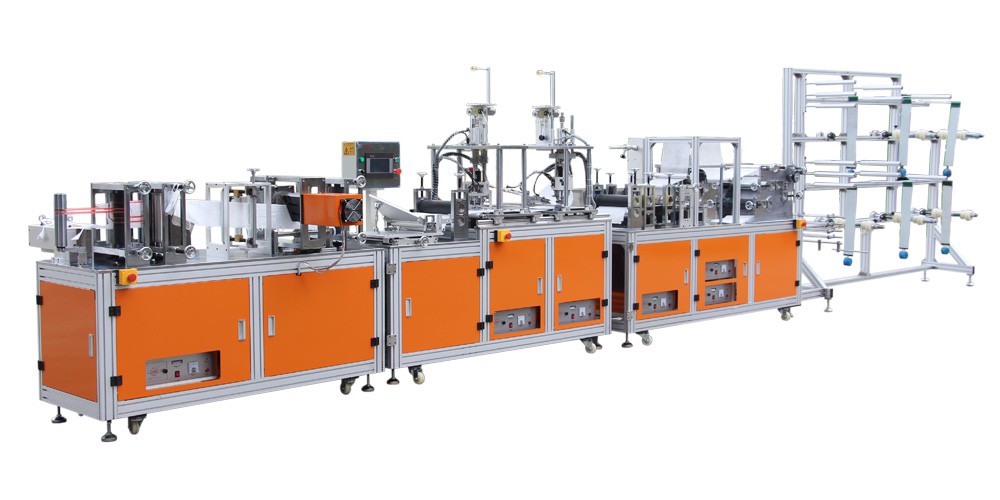

HD-0529 economical automatic production line is designed for producing 2d flat fold mask. It can automatically produce 2d flat fold mask by the processing of material feeding,logo printing,nose clip welding,folding,mask welding/cutting,ear loop welding/folding,folding line welding,cutting and finished mask outputting.

• Dimension: 12100mm*1400mm*1800mm
• Capacity: 25-35pcs/min
• Voltage: 110V/220V/380V
• Air Pressure: 5-8kg/cm²
• Frequency: 15-20KHz
• Power: 7000W
• Weight: 1600Kg
