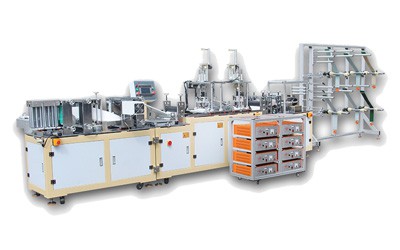

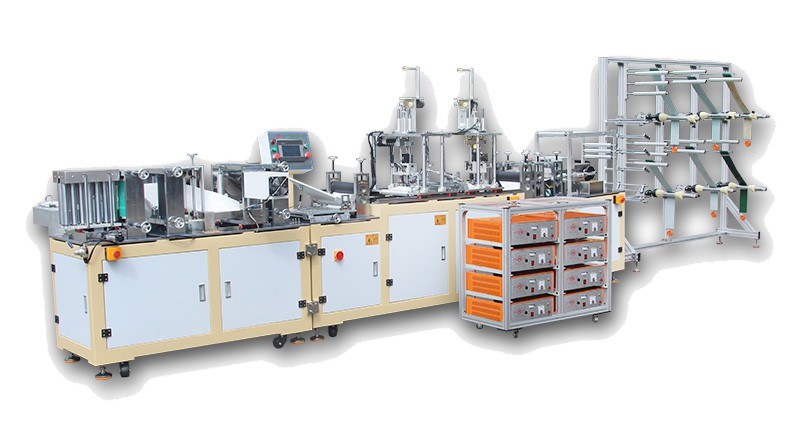

HD-0535 automatic production line is designed for producing FF1 head loop folding mask. It is highly automated and can realize the whole processing from material feeding to product outputting. It works sustained
and stable and product passing rate is up to 98%.
- Dimension: 9500mm*1400mm*1900mm
- Capacity: 20-25pcs/min
- Voltage: 110V/220V/380V
- Air Pressure: 3-6kg/cm²
- Frequency: 20KHz
- Power: 7500W
- Weight: 1800KG
- It is controlled by servo and highly automated, which can realize the whole processing from material feeding to product outputting.
- It folds masks exactly, imbeds nose clips precisely, and welds ear loops
symmetrically and firmly that ensures its product passing rate is up to 98%.
- It works sustainedly and stably and endures uninterrupted working.
