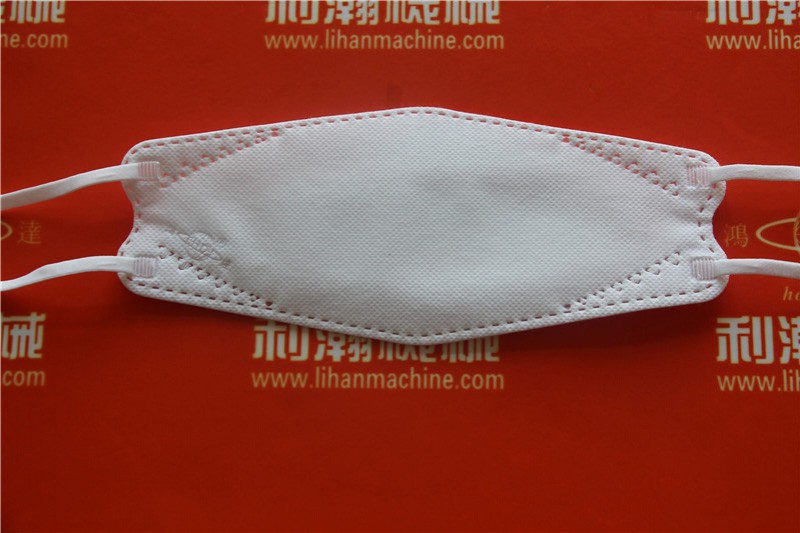

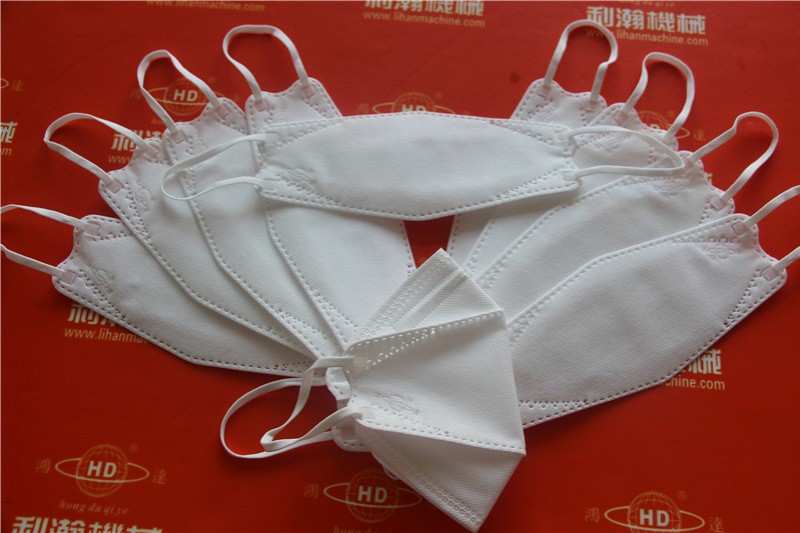

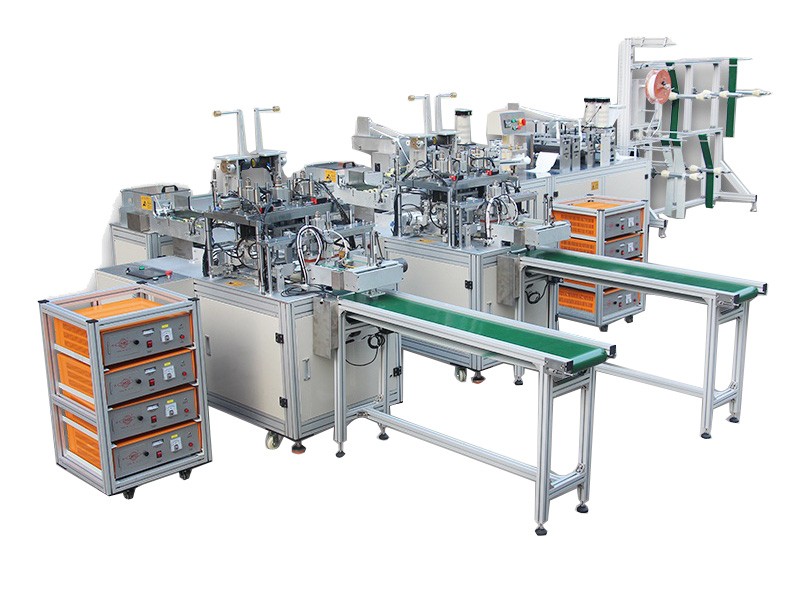

HD-0646 automatic production line (one-to-two) is designed for producing KF94 flat folding dust mask. The whole processing from material feeding to product outputting is automatic, so it is efficient and labor-saving.

Specifications

• Dimension: 7900mm*4200mm*2000mm
• Capacity: 75-80 pcs/min
• Voltage： 110V/220V/380V
• Air Pressure: 3-7 kg/cm²
• Frequency: 20 KHz
• Power: 10000 W

Features

• It is highly automated and controlled by PLC which can endure uninterrupted working.
• It is highly automated and controlled by PLC which can endure uninterrupted working.
• The mold is made of DC53 steel, which is long-term durable.
• It is equipped with automatic nose clip feeder. The nose clip is putted in the very middle position of the mask without material loss.
• It welds ear loops firmly and nicely, and its product passing rate is up to 98%.
• It use ultrasonic system made in Taiwan, which is reliable and stable.
