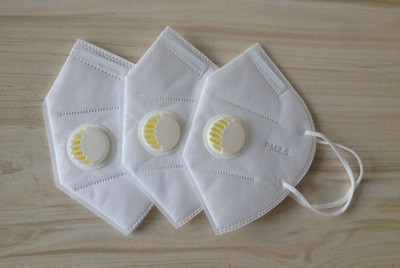

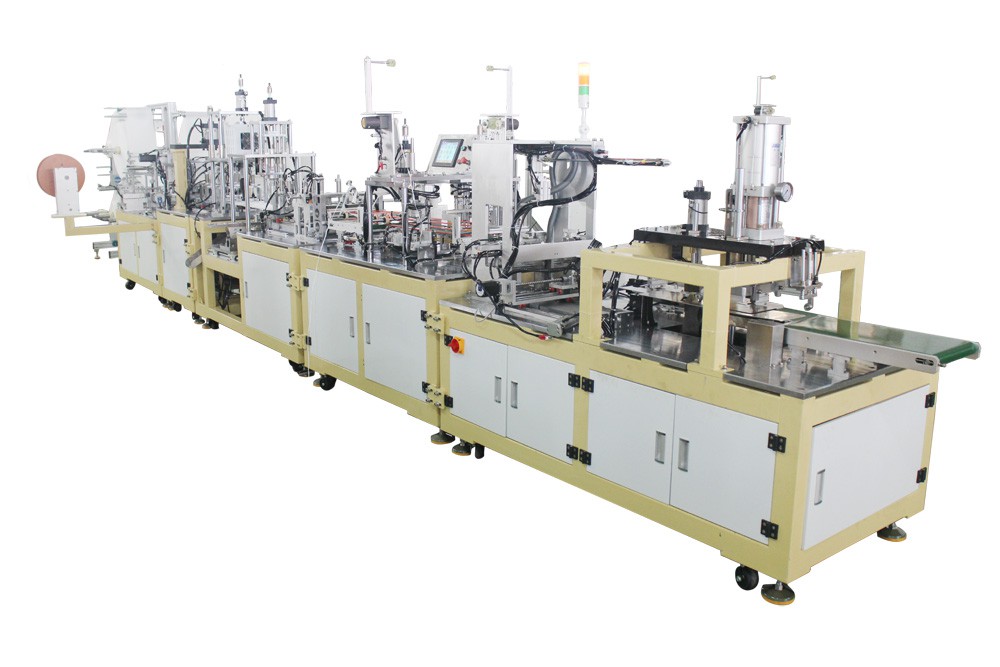

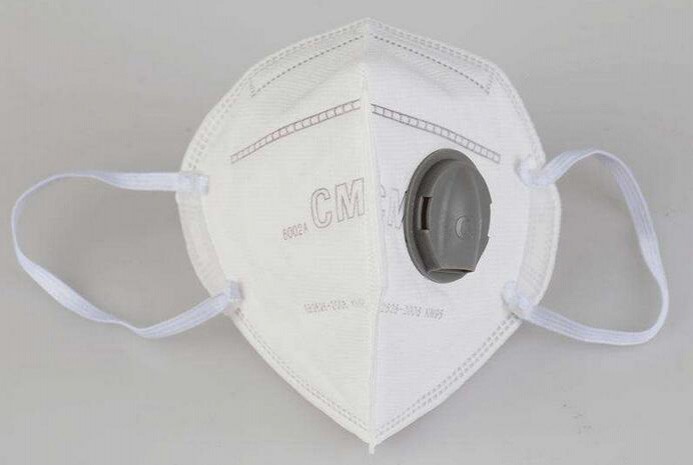

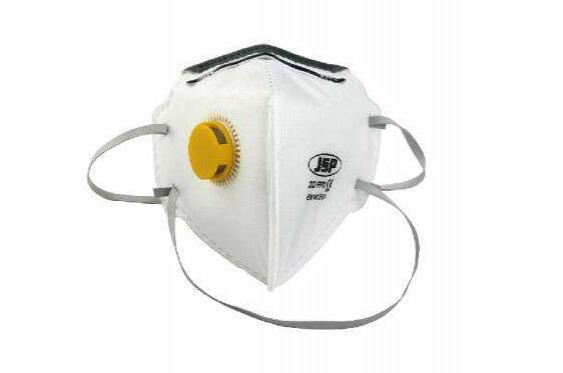

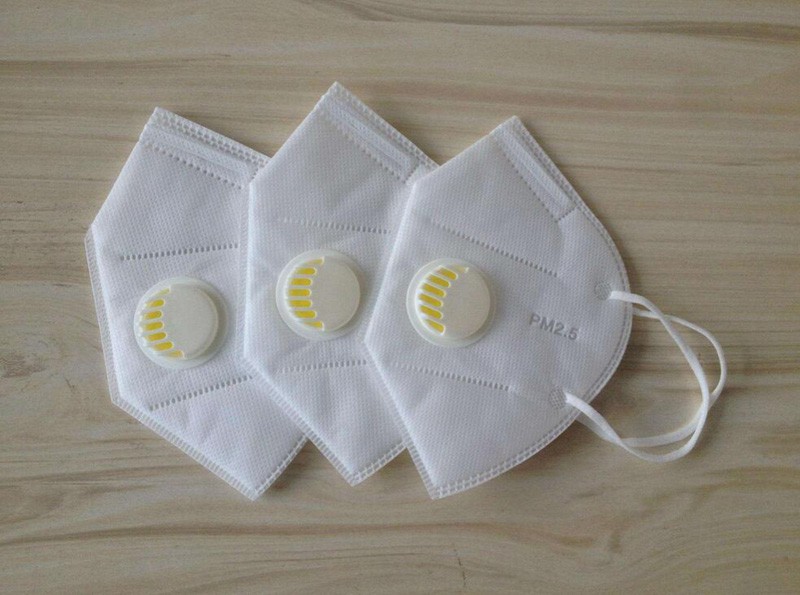

HD-0527 automatic production line is designed for producing FFP2 particulate valved masks which are composed of 3-6 layers of raw materials. This machine can adjust the mold to produce various fold-flat dust masks to meet different market demands.

Automatically material feeding (3-6 layers): inside nose clip welding,blank mask welding,breathing valve hole punching,breathing valve welding,blank mask cutting,ear loop welding,folding,folding line cutting,waste material discharging and finished mask outputting.

Specifications

• Model: HD-0527
• Dimension: 12600mm*1400mm*1800mm
• Capacity: 30-35pcs/min
• Voltage: 110V/220V/380V
• Air Pressure: 5-8kg/cm²
• Frequency: 15-20KHz
• Power: 8000W
• Weight: 1600Kg
