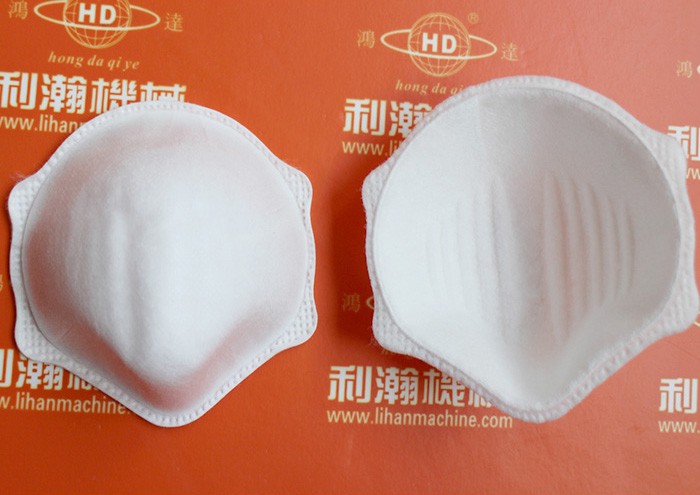

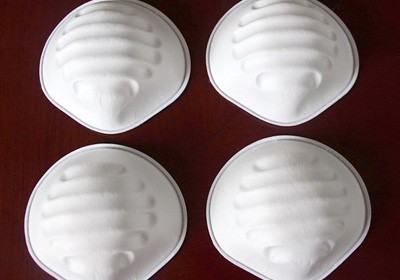

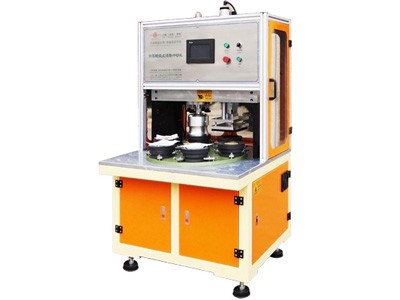

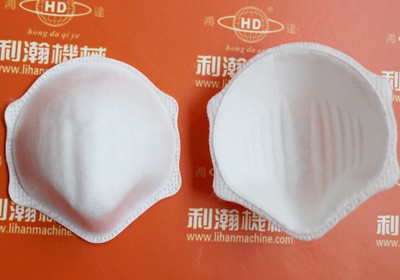

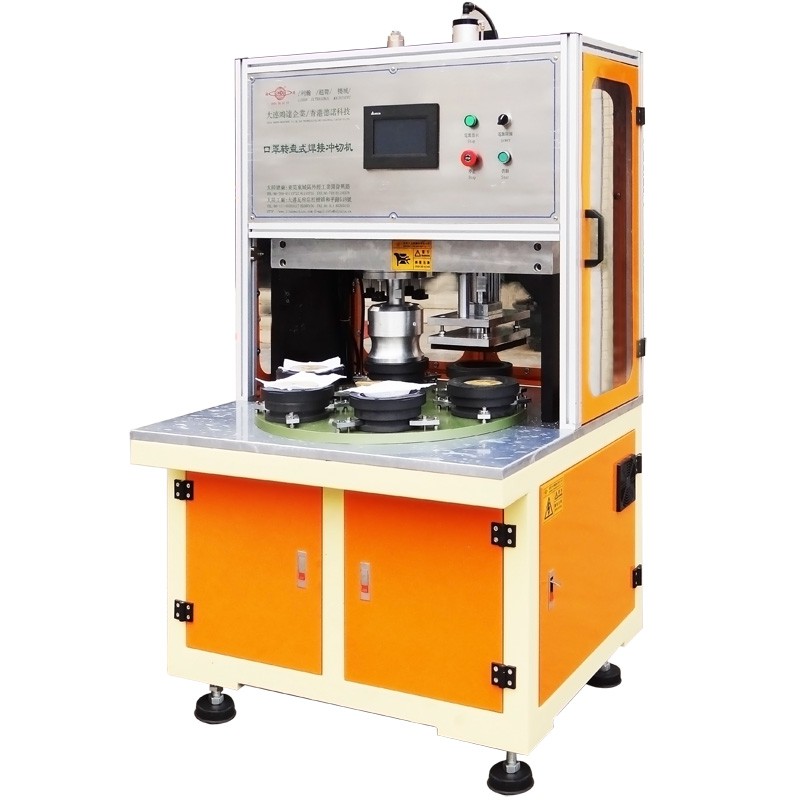

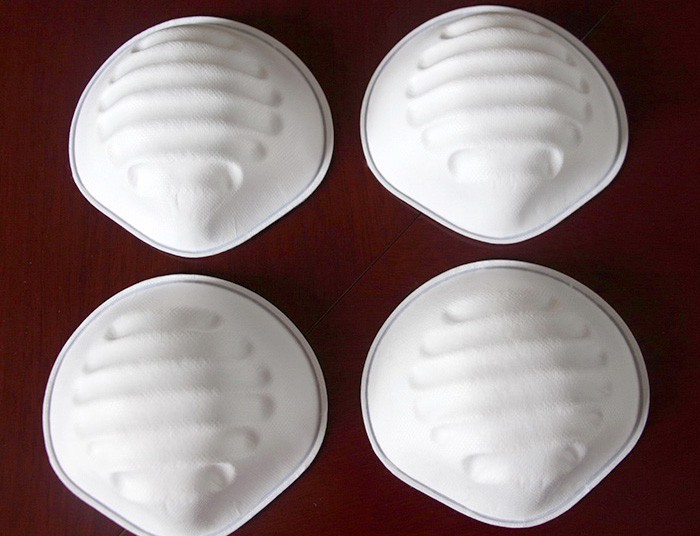

HD-0103 ultrasonic welding and cutting machine is designed for making cone-shaped respirator masks. It combines ultrasound welding and die cutting making it very efficient and labor-saving, the workers only need to discharge and reclaim materials.

This machine use servo positioning and rotary operation to cut and weld the respirator mask in a high speed. It is equipped with deviation-correction system to ensure the product quality. The machine frame and machine body is made of aluminium alloys, which makes it firm, good looking and never rusty. It provides a better choice to replace traditional handcrafting manufacture.

Specifications

• Dimension: 800mm*850mm*1800mm
• Capacity: 15-20 pcs/min
• Voltage: 110V/220V/380V
• Air Pressure: 5 kg/cm²
• Frequency: 15 KHz
• Power: 550 W

Features

• Using PLC and touch screen control system makes it very easy to operate.
• Using ultrasound welding with a cutting device fitting cut die, so it can cut out in one pass.
• Separated cutting head and welding head allowing it to perform simultaneous cutting and welding operations without deviation.
• The workers only need to discharge and reclaim materials, makes it labor-saving.
• It is equipped with six-station turntable to cooperate the separated cutting head and welding head, very high efficient.
