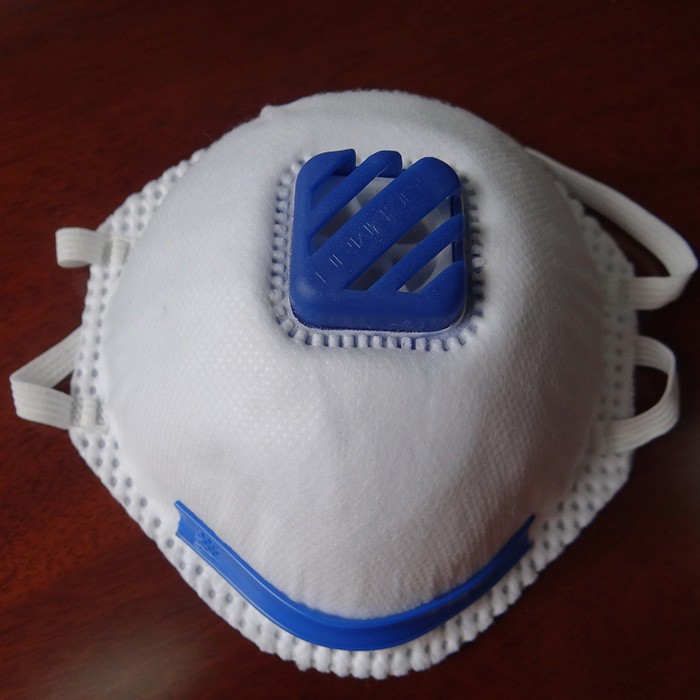

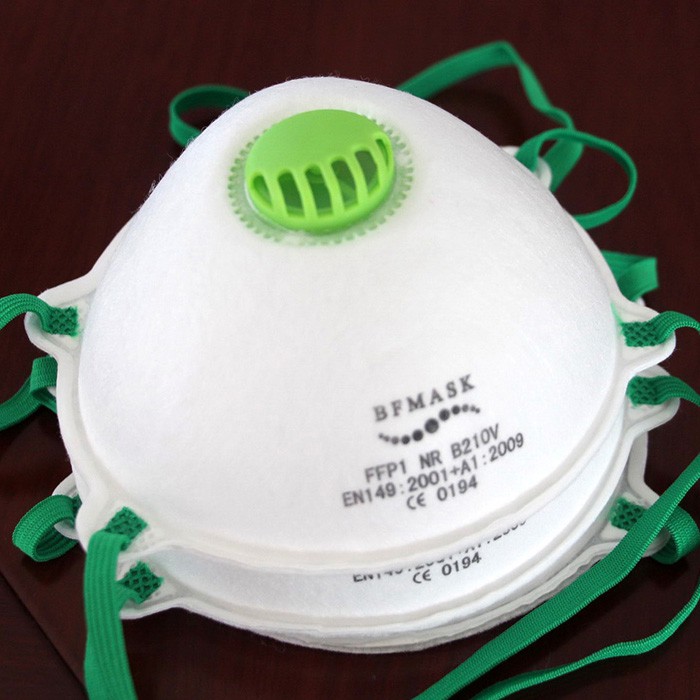

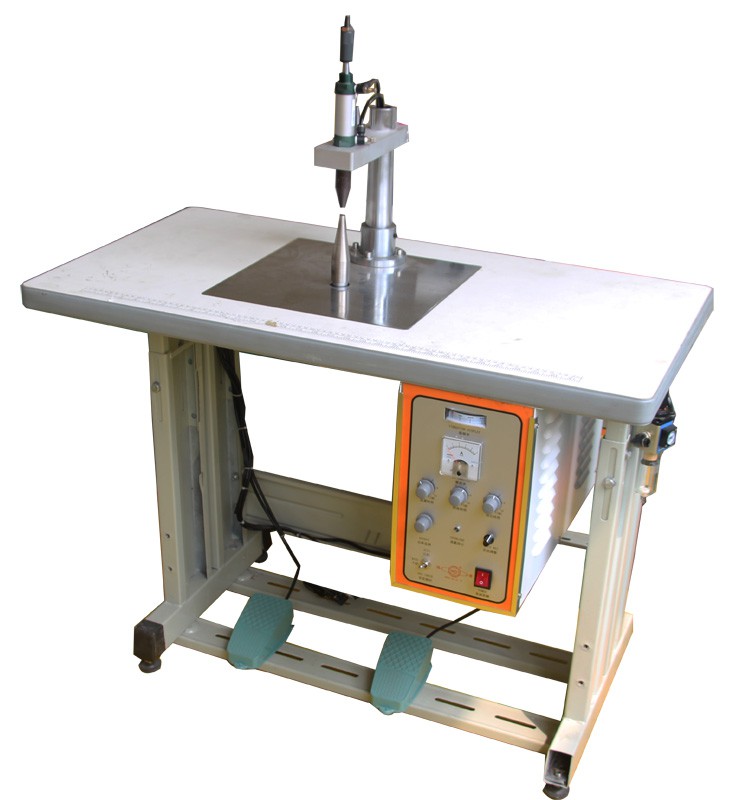

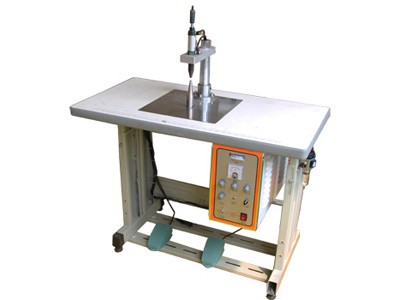

HD-0206 ultrasonic spot welding machine is designed for the ear loop welding of cone-shaped respirator mask, special-shaped respirator, inside/outer ear loop of medical mask, and also other masks. It uses 28K ultrasonic avoiding the problem of traditional spot welding such as welding spot is not strong, ear loop fall off, etc.

Specifications

• Dimension: 1200mm*650mm*1500mm
• Capacity: 4-8 pcs/min
• Voltage: 110V/220V/380V
• Air Pressure: 3-6 kg/cm²
• Frequency: 20 KHz
• Power: 1200W

Features

• It use movable mold and can weld various types of ear loops. It is easy to operate and works efficiently.
• Its user-friendly base die design with positioning equipment make the positioning precisely and solve the problem of deviation.
