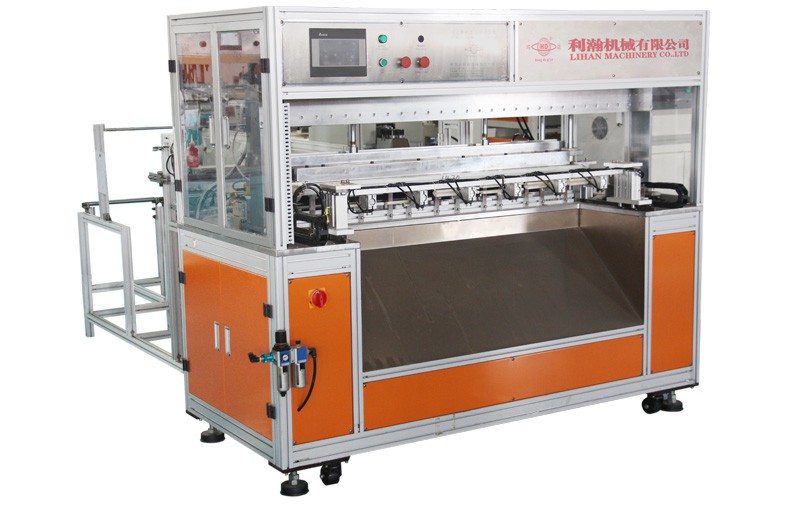

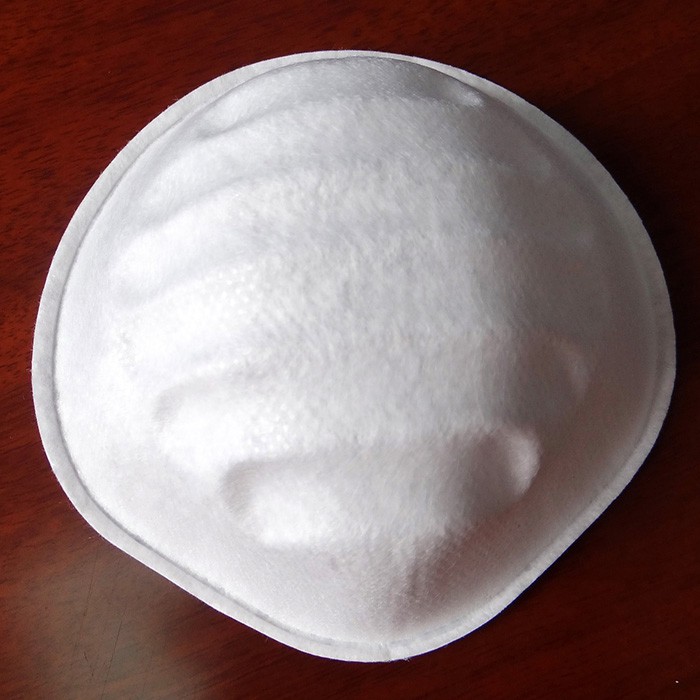

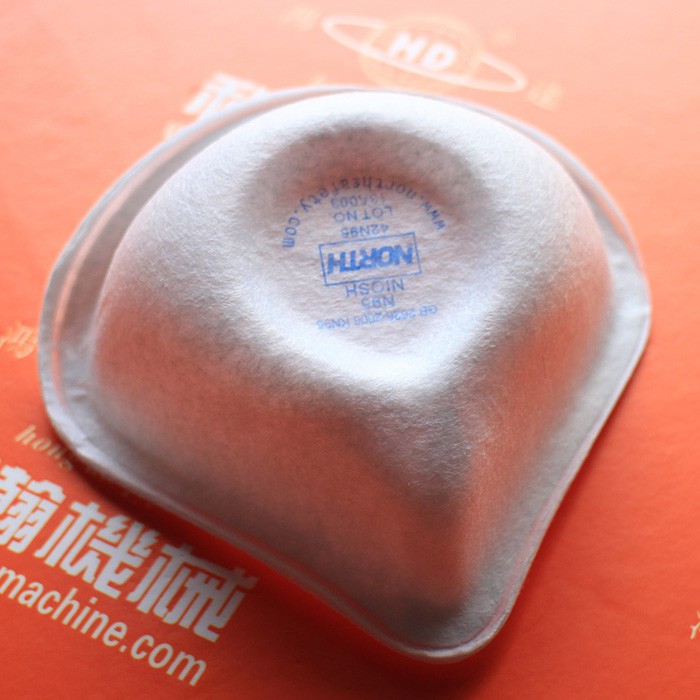

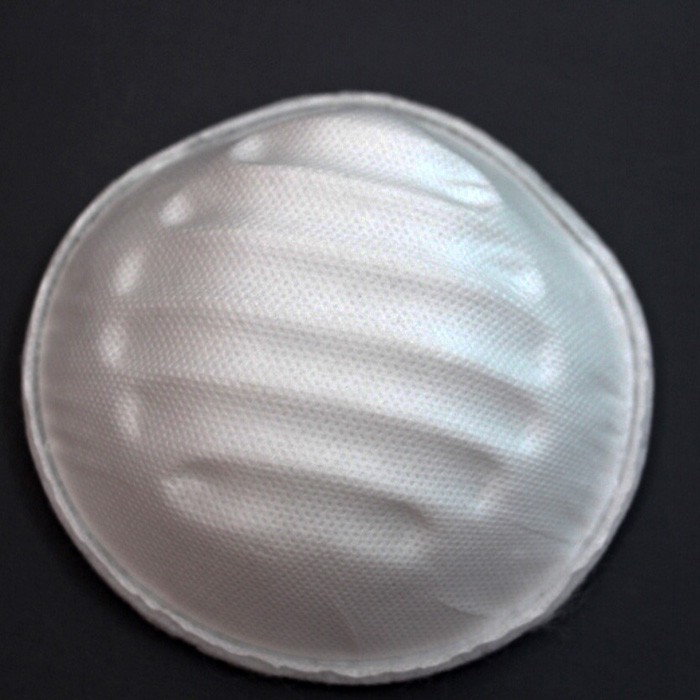

HD-0218 cone respirator mask shaping machine is designed for automatically producing cone-shaped respirator masks.

It uses constant temperature hot press forming ensures its products have attractive appearance, three-dimensional pattern, and steady quality.

Specifications

• Dimension: 4500mm*5000mm*2000mm
• Capacity: 20-35pcs/min
• Voltage: 110V/220V/380V
• Air Pressure: 5kg/cm²
• Power: 8000W
• Weight: 800Kg

Features

• The machine features auto feeding, auto cutting, and auto stacking.
• It is highly automated and controlled by plc. It is high efficient and labor-saving.
• It can endure uninterrupted working.
