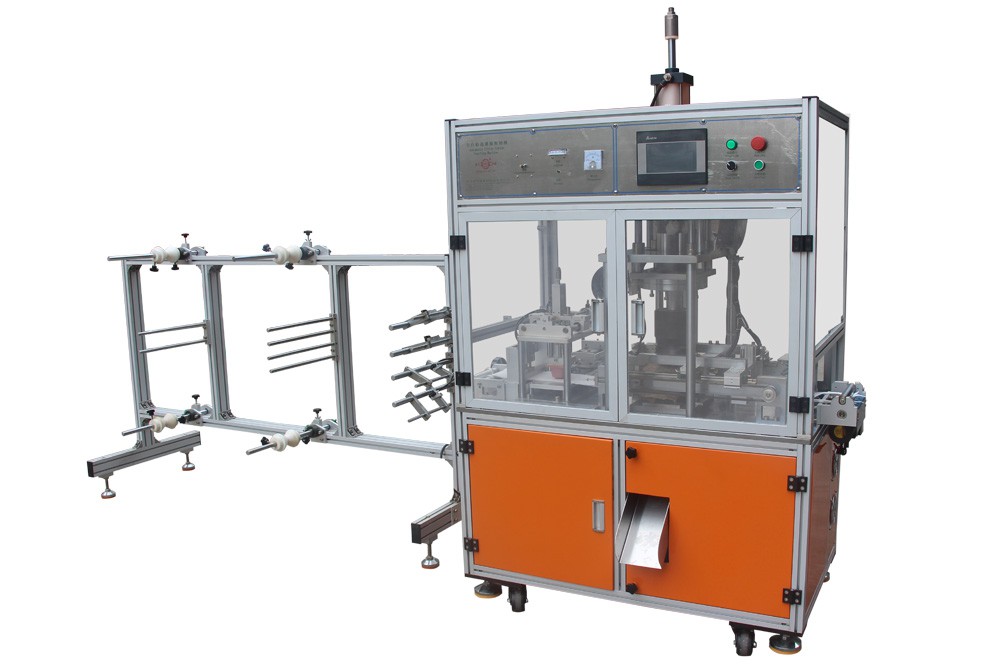

HD-0102 Ultrasonic n95 particulate filter making machine is designed for producing particulate filter and its products can meet R95 standard.

This machine can do a series of process including material feeding,logo printing,welding,cutting, which is much more efficient than traditional handcrafting and can reduce 5-6 labor. Furthermore, it is equipped with deviation-correction system for positioning so as to minimize material wasting.

Specifications

• Dimension: 900mm*750mm*1800mm(Customizable)
• Capacity: 20-35pcs/min
• Voltage: 110V/220V/380V
• Air Pressure: 3-6 kg/cm²
• Frequency: 15/20 KHz
• Power: 4200W

Features

• Using servo motor control system and variable frequency drive, equipping photoelectric detection device which can adjust machine speed according to actual needs.
• Aluminium alloy structure makes it firm, good looking and never rusty.
