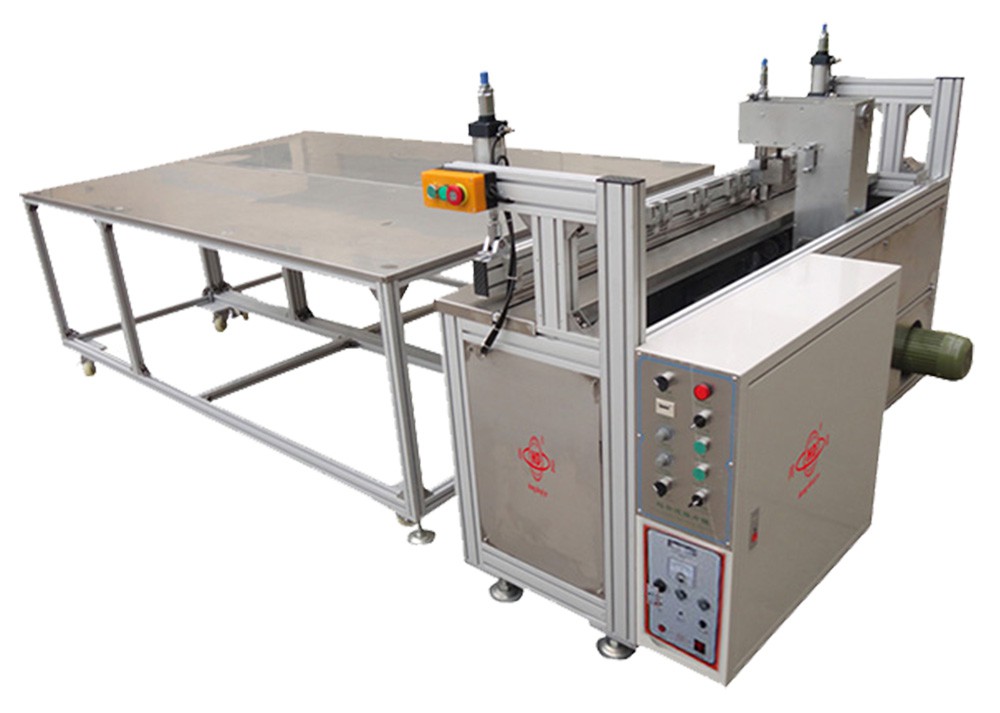

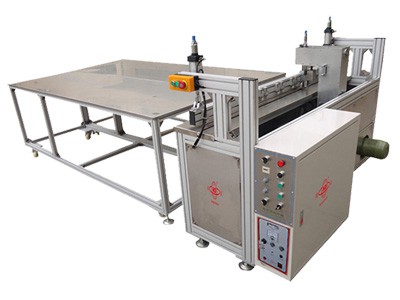

HD-1207 ultrasonic splicing machine uses ultrasonic principle to process the pp non woven materials by the process of demolition, slitting, seaming, marking, outputting, etc.

This machine is totally automatic, it is controlled by computer program ensure that its products are in the same size, without raw edge, and have strong pulling force.

Specifications

• Product Size: 20-70 Inches
• Voltage: 110V/220V/380V
• Weight: 850KG
• Dimension: 3000(L)x 1300(W)x 1200(H)mm (Customizable)
• Power: 2KW
• Air Pressure: 20kg/cm²
• Capacity: 5-15pcs/min

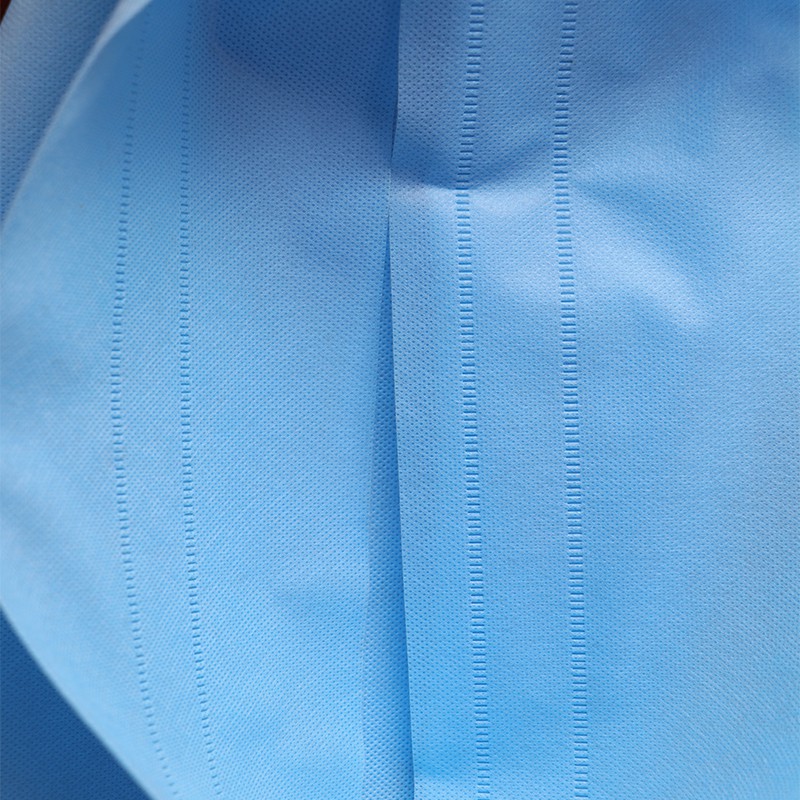

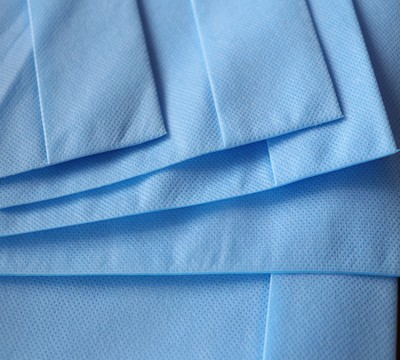

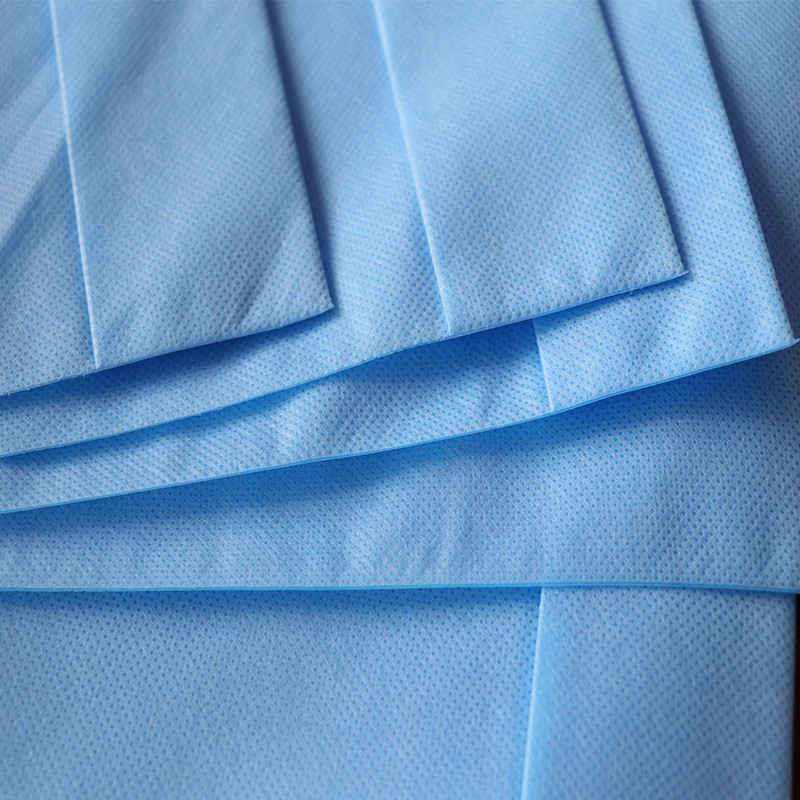

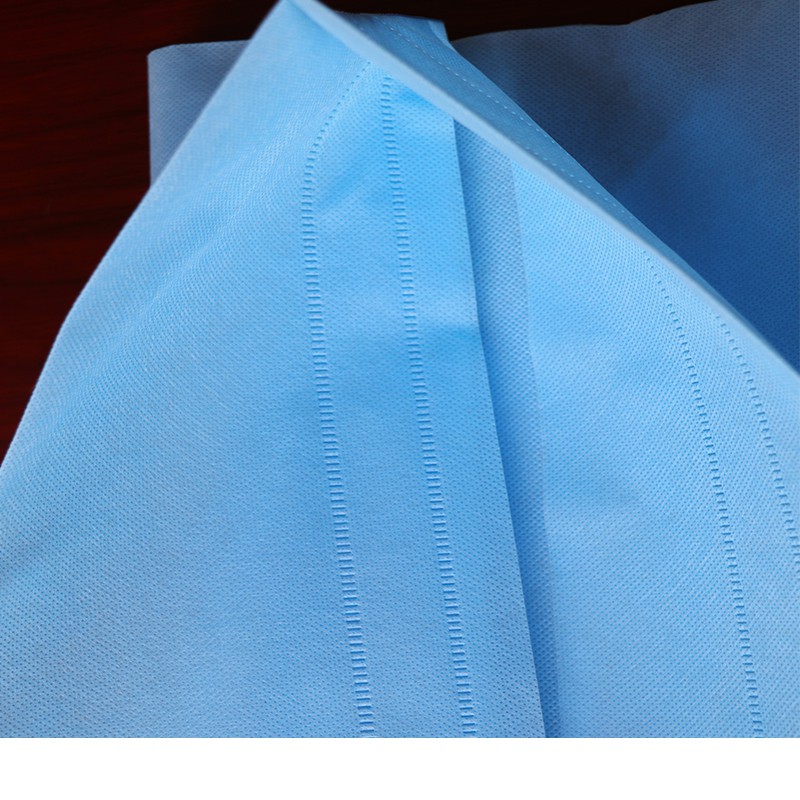

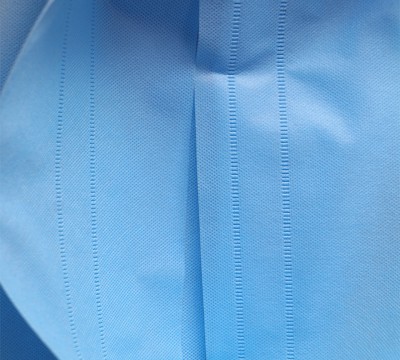

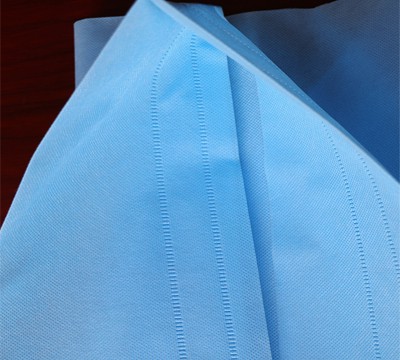

Product Samples
