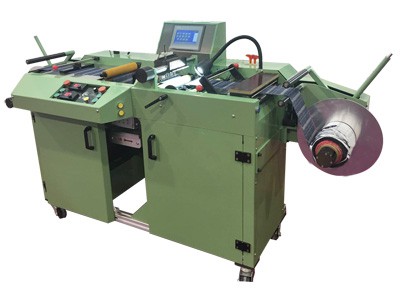

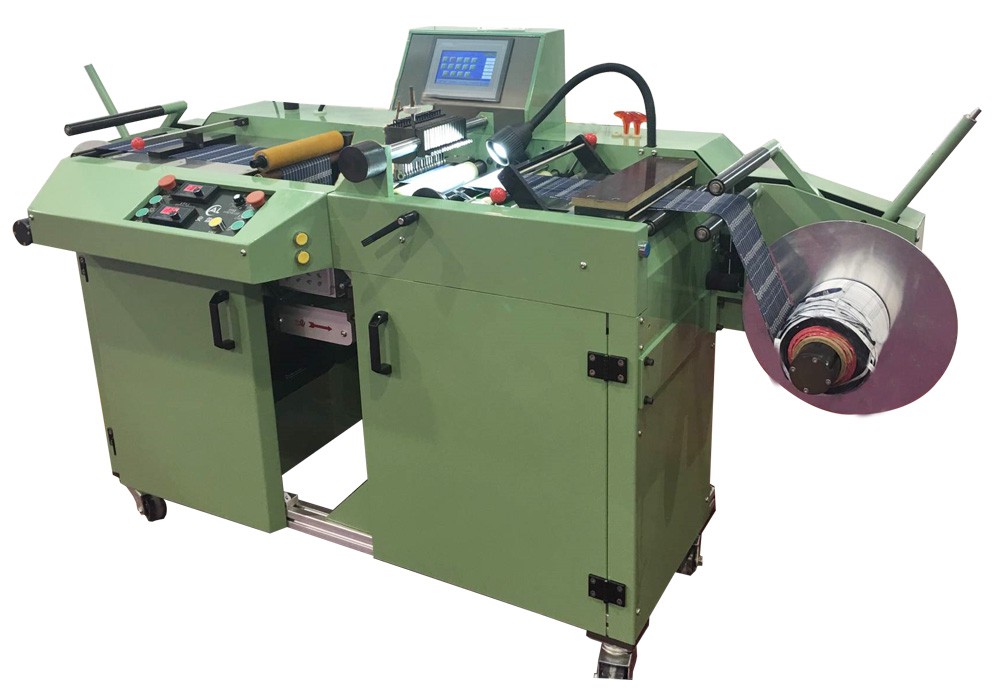

HD-1116 ultrasonic slitting machine for labels is designed for producing the ribbons and trademark belt with the automatically process of cutting, slitting, and edge sealing. The machine is high automatic and controlled by PLC, its products are good quality without hardening edge, very popular with customers.

Specifications

• Dimension: 2600*1100*1500mm
• Customizable: 0-20m/min
• Voltage: 110V/220V/380V
• Air Pressure: 3-6kg/cm²
• Frequency: 20KHz
• Power: 5500W
• Weight: 700kg

Features

• This machine is designed for producing the ribbons and trademark belt of polyester, chinlon, cotton, artificial fabrics, natural rubber materials.
• It’s equipped with German cylinder, Italy deviation-correction system and Taiwan steel mold, so it is high efficient and stable.
• The ultrasonic process and edge sealing ensure the product has the good appearance without burning，fraying, or raw edge.
• The space between the blades can be adjusted according to your needs and the whole toolholder can be moved towards left or right.
• The machine is convenient to adjust so it can easily accomplish the process you wish.
