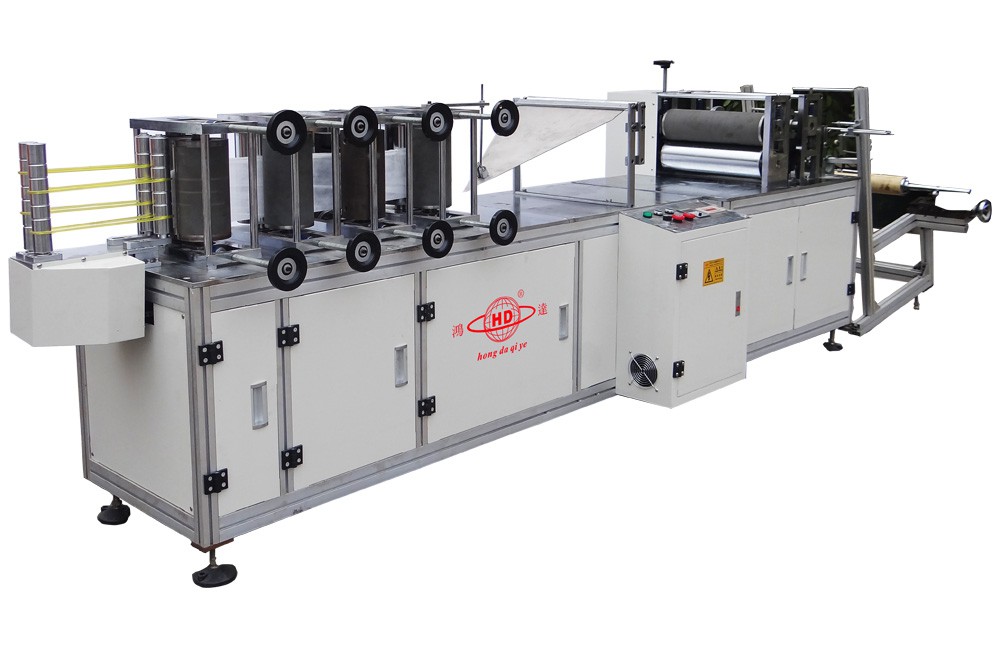

HD-0508 automatic disposable shoe cover making machine is designed to use nonwoven as material to make shoe covers. It use PLC control and can automatically do all the process from raw materials to finished goods.

Specifications

• Dimension: 3200(L)*1100(W)*1300(H)mm
• Product Size: 150—350MM
• Weight: 1650KG
• Operating Personnel: 1 Person
• Power: 9kW
• Air Pressure: 3-6kg/cm²
• Voltage: 110V/220V/380V/50/60HZ
• Capacity: 30-50pcs/min

Features

• The machine body and structure is made of aluminium alloy materials make it firm and good looking.
• It is controlled by PLC program and equipped with ultrasonic system and automatically tension control system, so it is high automatic and labor saving.
• Use ultrasound and steel wheel to realize automatic edge banding, without damaging the processing material.
• The wheel is easy to install and dismount, very convenient to change wheels of different patterns as you need. It uses eccentric adjustment to quickly adjust.
• The pattern wheel is made of metal materials and the welding head is durable.
